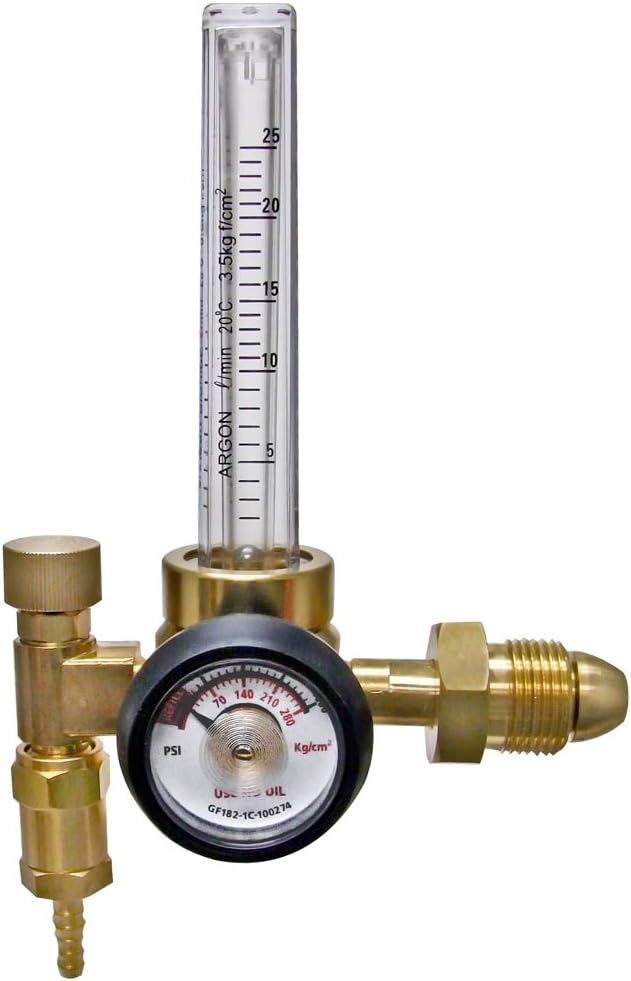

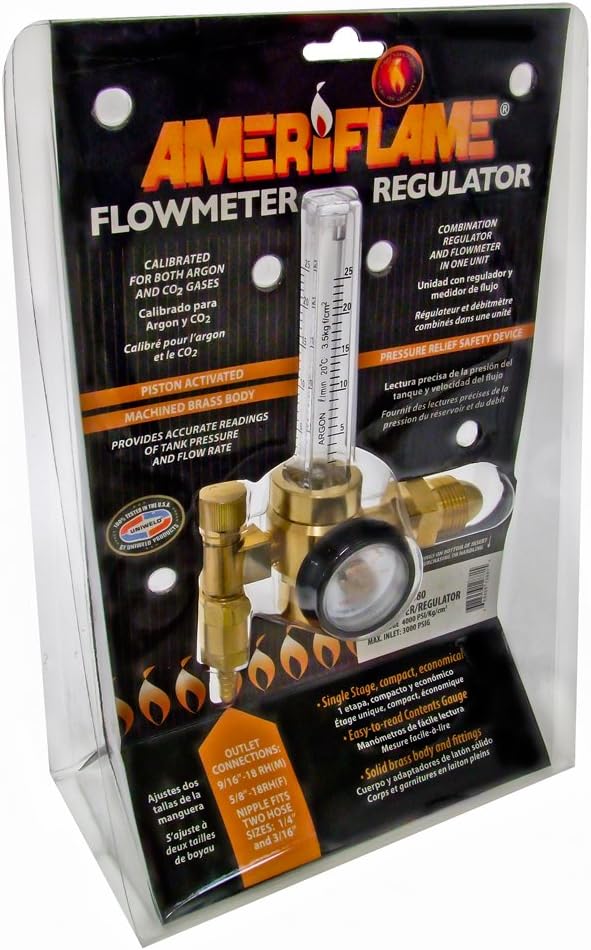

Argon Flowmeter Regulator with Single Stage CGA580 Inlet

Gallery
Description

Description

Combination Flowmeter and Regulator In One Unit, 4000 PSI/Kg/cm2
CGA580 Inlet, Maximum Inlet: 3000 PSIG
Self-Centering Flow Tube Keeps Ball Centered To Assure Flow Accuracy
Easy-To-Read 1.5-Inch Contents Gauge with Rubber Gauge Protector
Pressure Relief Safety Device, Solid Brass Body and Fittings

Dimensions

Outlet Connection Size	5/8"-18
Gauge Diameter	1 1/2 in
Inlet Connection Size	0.965"-14
Overall Length	7-7/8"
Dedupe with CGA Number and Inlet Connection Size	CGA 580

Details

Item	Flowmeter Regulator
Compatible Gas Type	Argon
Body Material	Brass
Number of Stages	Single Stage
Outlet Pressure (Maximum)	50 psig
Regulator Supply Type	Cylinder
Delivery Pressure Range	10 to 70 scfh
Gauges Delivery Pressure	4000 psi
Application	General Purpose
Supply Pressure Gauge	0 to 4000 psi
Delivery	10 to 70 scfh
Diaphragm Material	Neoprene
Regulator Capacity	Light to Heavy Duty
Includes	Combination Regulator and Flowmeter in One Unit
Stages	Single Stage
Regulator Application	General Purpose
Product Type	Flowmeter Regulator
Carbon Dioxide Flow Rate (Maximum)	70 scfh
Argon Flow Rate (Maximum)	70 scfh
Outlet Connection Gender	Female
Helium Flow Rate (Maximum)	70 scfh
Maximum Gauge Inlet Pressure	3,000 psi
CGA Number	CGA 580
Inlet Thread Direction	Right Hand
Outlet Connection Type	UNF
Nitrogen Flow Rate (Maximum)	70 scfh
Inlet Connection Type	NGO
Inlet Connection Gender	Male
Inlet Pressure (Maximum)	3,000 psig
Regulator Series	Ameriflame

Argon Flowmeter Regulator with Single Stage CGA580 Inlet

$ 105.99

RF2480-580

Select quantity

Description

Combination Flowmeter and Regulator In One Unit, 4000 PSI/Kg/cm2
CGA580 Inlet, Maximum Inlet: 3000 PSIG
Self-Centering Flow Tube Keeps Ball Centered To Assure Flow Accuracy
Easy-To-Read 1.5-Inch Contents Gauge with Rubber Gauge Protector
Pressure Relief Safety Device, Solid Brass Body and Fittings

Dimensions

Outlet Connection Size	5/8"-18
Gauge Diameter	1 1/2 in
Inlet Connection Size	0.965"-14
Overall Length	7-7/8"
Dedupe with CGA Number and Inlet Connection Size	CGA 580

Details

Item	Flowmeter Regulator
Compatible Gas Type	Argon
Body Material	Brass
Number of Stages	Single Stage
Outlet Pressure (Maximum)	50 psig
Regulator Supply Type	Cylinder
Delivery Pressure Range	10 to 70 scfh
Gauges Delivery Pressure	4000 psi
Application	General Purpose
Supply Pressure Gauge	0 to 4000 psi
Delivery	10 to 70 scfh
Diaphragm Material	Neoprene
Regulator Capacity	Light to Heavy Duty
Includes	Combination Regulator and Flowmeter in One Unit
Stages	Single Stage
Regulator Application	General Purpose
Product Type	Flowmeter Regulator
Carbon Dioxide Flow Rate (Maximum)	70 scfh
Argon Flow Rate (Maximum)	70 scfh
Outlet Connection Gender	Female
Helium Flow Rate (Maximum)	70 scfh
Maximum Gauge Inlet Pressure	3,000 psi
CGA Number	CGA 580
Inlet Thread Direction	Right Hand
Outlet Connection Type	UNF
Nitrogen Flow Rate (Maximum)	70 scfh
Inlet Connection Type	NGO
Inlet Connection Gender	Male
Inlet Pressure (Maximum)	3,000 psig
Regulator Series	Ameriflame

Details

There is currently no content in this section. Use the sidebar to add material to this section.

Features & Benefits

There is currently no content in this section. Use the sidebar to add material to this section.

Argon Flowmeter Regulator with Single Stage CGA580 Inlet

$ 105.99
