The CK Worldwide D4GS116-P Gas Saver Kit is a 4 Series stubby TIG torch front-end kit for 1/16-inch tungsten electrodes. It is designed to improve shielding-gas coverage, support extended tungsten stick-out and provide better joint visibility through the included clear glass cup.
Product details
- Series: CK Worldwide 4 Series
- Setup style: Stubby Gas Saver
- Tungsten size: 1/16 in
- Cup type: Clear glass
- Package quantity: 1 kit
- SKU: D4GS116-P
Compatibility
Compatible with CK Worldwide 4 Series stubby setups for many 17, 18, 26, 150, 210, 300, 510 Trimline, FL3L, CKM350, CWHTL300, CWH350 and CWM350-style torches. Confirm the torch series before ordering.
Performance
- Designed to reduce shielding-gas consumption compared with standard collet-body setups
- Provides more even shielding-gas coverage around the tungsten and weld area
- Supports tungsten stick-out up to approximately six times the electrode diameter when the application allows
- Clear cup improves visibility around the joint

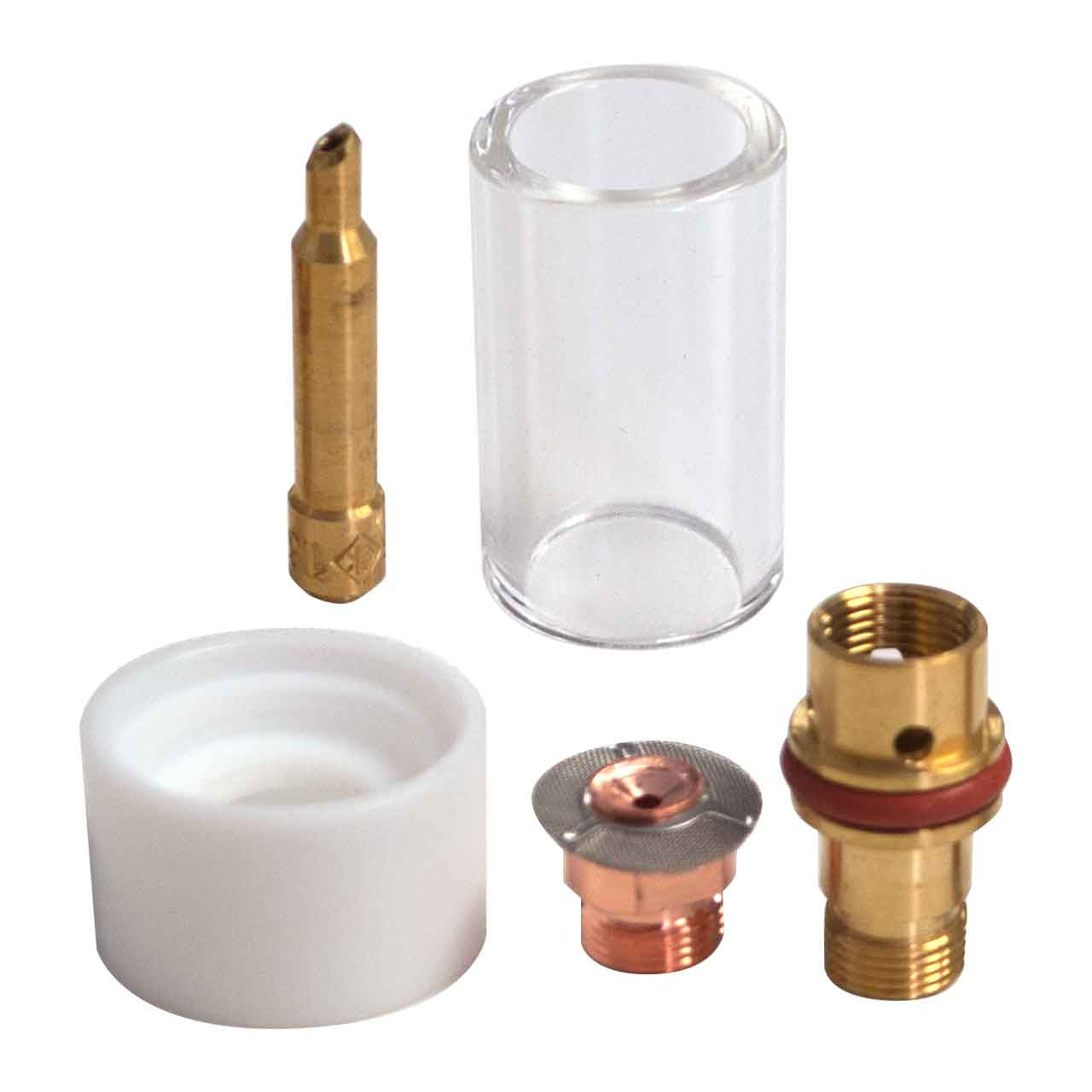

What is included
- CK3HSGS heat shield
- CK4C116GS 1/16-inch short collet
- CK4CBGS short collet body
- CKTAS116GS 1/16-inch tungsten adapter
- CK2P8GS glass cup
