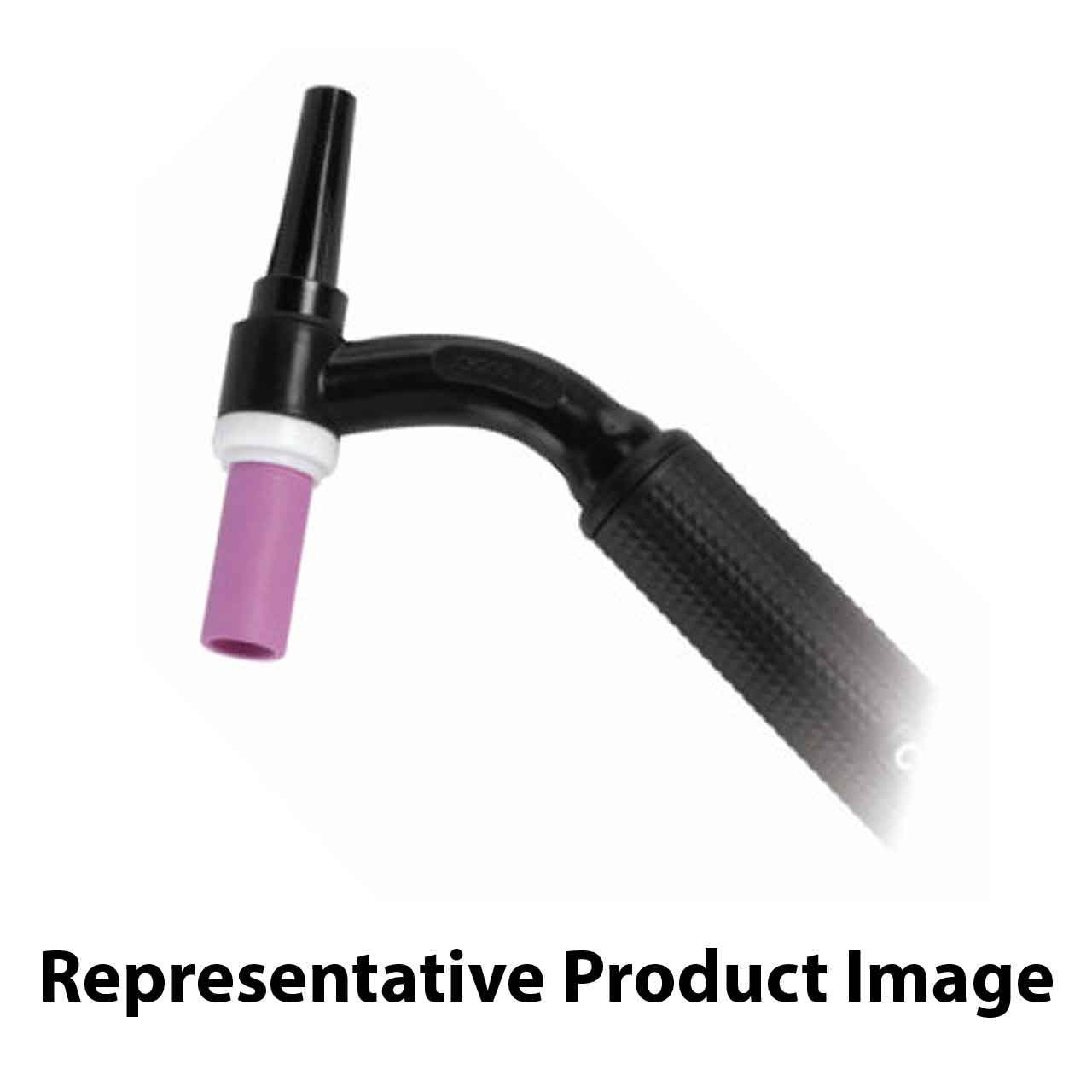

Flex head a maximum of 40 degrees from centerline. See below for more details and recommendations.
• 8-1/4" (20.9cm) 3-3/4 oz (106gm)
• 2 Series Head Accessories

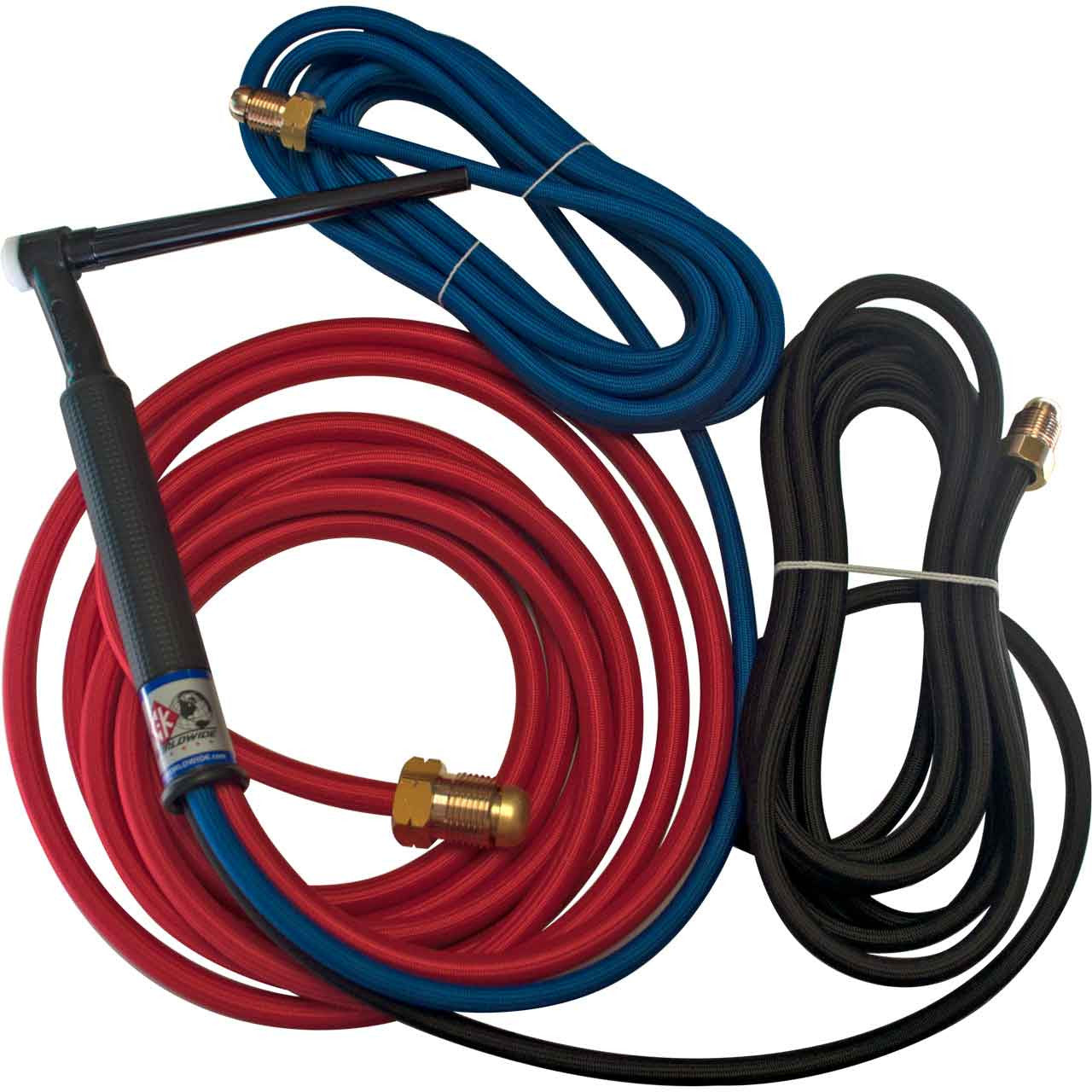

CK Worldwide uses a unique head assembly that provides the largest water jacket available in an 18 or 20 series torch. With this type of construction, CK provides over 4 x the surface area for maximum heat transfer versus competitive torch heads! INCREASED COOLING CAPACITY!! Over 4 x the surface area for maximum heat transfer Cooler running torches Longer consumable life Will hook up to standard cables and hoses Fail-Safe hose fittings (no wire ties required) WARNING: Do not start bending your torch right out of the box! Strike a couple of arcs to warm up the coils inside the torch body for easier bending. Once warmed up, you are ready for bending the flexible area, generally, the area between where the handle starts and just about 1/2″ before the head. Maximum 40 degrees from centerline. Keep amount of flexes to a minimum. Spread bend over entire neck of torch. Package of 1
Amperage: 300 Amp
Cable Type: 3-Piece Super-Flex
Rated Output: 300 Amp ACHF or DCSP
Type: Water Cooled
Head Style: Flex Head without Valve
Consumable Series: 2 Series
Torch Style: Standard
Length: 12.5 ft.
Torch Series: CK230
Gas Valve: Does Not Have Gas Control Valve
What Series is my Torch? Knowing the series of your torch takes the guess work out of finding consumables and replacement parts.
2 Series: torches includes 9, 20, 100, 110, 130, 200, 230FL2L, CKM230, CWH230, WCM230 torches and other popular torches of Weldcraft, Lincoln, WeldTec and Profax with similar models.
3 Series: torches include 17, 18, 26, 150, 210, 300, 510, Trimline, FL3L, CKM350, CWHTL300, CWH350, CWM350 and other popular torches of Weldcraft, Lincoln, WeldTec and Profax with similar models.
4 Series: stubby consumables are compatible with 17, 18, 26, 150, 210, 300, 510 Trimline, FL3L, CKM350, CWHTL300, CWH350, CWM350 torches.
51 Series: consumables are compatible with the CK510 torches
